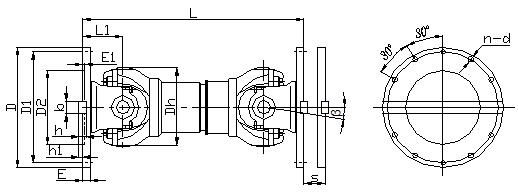

SWP SHORT TYPE CARDAN SHAFTS

SWP225G

SWP250G

SWP285G

SWP315G

SWP350G

Rotary Diameter D

225

250

285

315

350

Nominal Torque Tn KN.m

56

80

112

160

224

Fatigue Torque Tf KN.m

28

40

56

80

112

Axial Angle ¡

5

5

5

5

5

Size

S

40

40

40

40

50

L

470

600

665

740

850

D

275

305

348

360

405

D1

248

275

314

328

370

D2H7

135

150

170

185

210

E

15

15

18

18

22

E1

5

5

7

7

8

b-h

32-18

40-18

40-24

40-24

50-32

h1

9

9

12

12

16

L1

80

100

120

135

150

n-d

10-15

10-17

10-19

10-19

10-21

Weightkg

78

142

190

260

355

190.55-190.70 Super short designs cardan shaft

Design: 9.06 Cardan shaft with length compensation, super short design

cardan shaft size 190.55 190.60 190.65 190.70
Tcs KN.m 33 48 68 94
Tk KN.m 25 37 52 72
Tdw KN.m 11 17 25 36
Defiection angle 5 5 5 5
Flange A mm 305 348 360 405
Rotation K mm 250 285 315 350
B mm 275 314 328 370
C mm 140 175 175 220
F mm 5.2 6.2 5.8 6.8
G mm 15 18 18 22
H mm 16.1 18.1 18.1 20.1
l - 10 10 10 10
M mm 80 90 100 108
W - 100*2.5 100*2.5 130*3 130*3
Lz mm 495 545 600 688
La mm 40 40 40 55
G kg 97 120 169 256
