SWC Universal Joint Shaft

　

BF Type

DH Type

CH Type

WH Type

WF Type

WD Type

　

BH Type

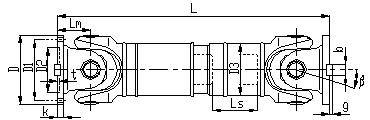

Model Rotary Diameter D Nominal Torque Tn KN.m Fatigue Torque Tf KN.m Axial Angle  α ≤  Size mm
D1 D2 D3 Lm n-d K t b g
SWC100 100 1.6 0.8 25º 84 57 60 55 6-9 7 2.5 - -
SWC120 120 4.5 2.25 25º 102 75 70 65 8-11 8 2.5 - -
SWC150 150 10 5 25º 130 90 89 80 8-13 10 3.0 - -
SWC180 180 20 10 25º 155 105 114 110 8-17 17 5.0 - -
SWC200 200 36 18 15º 173 120 140 115 8-17 20 5.0 28 8.0
SWC225 225 50 25 15º 196 135 152 120 8-17 20 5.0 32 9.0
SWC250 250 71 35.5 15º 218 150 168 140 8-19 25 6.0 40 12.5
SWC285 285 100 50 15º 245 170 184 160 8-21 27 7.0 40 15.0
SWC315 315 140 70 15º 280 185 219 180 10-23 32 8.0 40 15.0
SWC350 350 200 100 15º 310 210 267 194 10-23 35 8.0 50 16.0
SWC390 390 280 140 15º 345 235 267 215 10-25 40 8.0 70 18.0
SWC440 440 400 200 15º 390 255 325 260 16-28 42 10.0 80 20.0
SWC490 490 560 280 15º 435 275 325 270 16-31 47 12.0 90 22.5
SWC550 550 800 400 15º 492 320 426 305 16-31 50 12.0 100 22.5
SWC620 620 1120 560 15º 555 380 426 340 10-38 55 12.0 100 25

Type Rotary Diameter 100 120 150 180 200 225 250 285 315 350 390 440 490 550 620
BH Type Lmin 390 485 590 810 850 920 1035 1190 1315 1410 1590 1875 1985 2300 2500
Weight G 7 12 26 75 105 130 180 273 389 601 758 1210 1602 2503 3200
Flexible Ls 55 80 80 100 100 140 140 140 140 150 170 190 190 240 240
BF Type Lmin - - - 810 850 920 1035 1190 1315 1410 1590 1875 1985 2300 2500
Weight G - - - 90 120 148 210 315 440 662 857 1380 1731 2667 3367
Flexible Ls - - - 100 100 140 140 140 140 150 170 190 190 240 240
DH Type Lmin - - - 550 580 640 735 880 980 1070 1200 - - - -
Weight G - - - 62 84 102 148 240 350 500 655 - - - -
Flexible Ls - - - 40 60 70 70 80 90 90 90 - - - -
CH Type Lmin - - - 1425 1450 1500 1615 1875 2000 2115 2245 2510 2620 3085 -
Weight G - - - 114 163 192 250 375 544 853 1000 1620 1860 3150 -
Flexible Ls - - - 700 700 700 700 800 800 800 800 800 800 1000 -
WH Type Lmin 243 307 350 480 500 520 620 720 805 875 955 1155 1205 1355 -
Weight G 5 8.5 20 52 67 85 144 215 302 415 566 870 1140 1526 -
WF Type Lmin - - - 560 580 610 715 810 915 980 1100 1290 1360 1510 1690
Weight G - - - 68 88 104 150 240 332 452 668 980 1274 1763 2442
WD Type Lmin - - - 440 460 480 560 640 720 776 860 1040 1080 1220 1360
Weight G - - - 60 75 90 140 201 291 395 554 854 1156 1624 2220
kg/Extended 100 0.35 0.55 0.85 2.8 3.9 4.9 5.3 6.3 8 15 15 21.7 21.7 34 34
