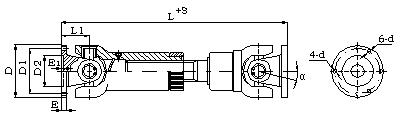

LQA Universal Joint Shaft

　

LQA Type

Model

Rotary Diameter  D

 Nominal Torque

 Tn N.m

Axial Angle α°

D1

 D2

H7

n-d

E

 E1 L1 S Lmin L add 100 mm weight Most weight kg
LQA60 60 250 25° 45 20 4-ф7 6 4 36 20 280 0.296 4.5
LQA80 80 450 25° 65 35 4-ф7 8 4 45 30 360 0.375 5.5
LQA90 90 630 25° 75.5 42 6-ф7 8 4 50 30 420 0.375 5.8
LQA100 100 880 25° 84 50 6-ф9 9 4 55 35 480 1 6.1
LQA110 110 1240 25° 90 50 6-ф9 9 4 60 35 480 1 8.2
LQA120 120 1750 25° 101.5 70 6-ф11 10 5 65 35 520 1.33 10.8
LQA140 140 2900 25° 120 70 6-ф11 10 5 70 40 570 1.63 20
LQA150 150 3700 25° 130 80 6-ф13 12 5 75 40 650 2 24.5
LQA160 160 4500 25° 135 80 6-ф13 13 5 80 50 650 2.28 47.9
LQA180 180 5500 25° 155 90 6-ф13 13 5 85 50 670 2.66 49.8
